AIR FREIGHT

AIR FREIGHT

Air freight forwarding is the process of organizing and planning the transport of freight from one point to another by air. An air freight forwarder specializes in moving freight by air on either passenger aircrafts or specially designed cargo aircrafts. This specialization enables them to better understand the intricacies of air freight, create a relationship with the TSA

Ask: About Our Air Freight Services

Air Freight Container Specifications

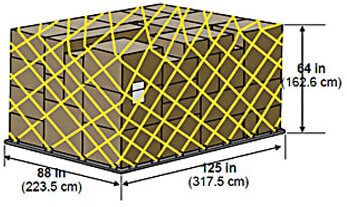

88” PALLET

  • IATA ULD Code: PIP Classification: 88” Pallet with net
  • Suitable for: B747, B777, DC-10
  • Maximum volume: 11.9 cu. m (420 cu. ft.)
  • Maximum gross weight: 747/DC-10: 6033 kg (13300 lb)
  • 767: 5103 kg (1127 lb)
  • 777/DC-10: 4626 kg (10501 lb)
  • Can be loaded to 96” (162 cm) and 118” (300 cm) on freighters

88” PALLET

  • IATA ULD Code: PIP Classification: 88” Pallet with net
  • Suitable for: B747, B777, DC-10
  • Maximum volume: 11.9 cu. m (420 cu. ft.)
  • Maximum gross weight: 747/DC-10: 6033 kg (13300 lb)
  • 767: 5103 kg (1127 lb)
  • 777/DC-10: 4626 kg (10501 lb)
  • Can be loaded to 96” (162 cm) and 118” (300 cm) on freighters
EXPAND ALL

HALF PALLET

  • IATA ULD Code: PLA half pallet with net
  • Also knows as: PLB, FLA, P9A, P9B, P9P, P9R, P9S
  • Classification: HP
  • Rate Class: 6
  • Suitable for: Lower deck: B747, B777
  • Main deck: B707F, B727F, B737F
  • Maximum volume: 7.2 cu.m (254 cu. ft.)
  • Maximum gross weight: 3175 kg (6999 lb)

16 FT PALLET

  • IATA ULD Code: PRA 16ft flat pallet with net
  • Also known as: PMA, P4A, P4M, PZA
  • Classification: MDP
  • Rate Class: Type 1P
  • Suitable for: B747, B747Combi
  • Maximum volume: 26.8 cu. m (946 cu. ft.)
  • Maximum gross weight: 11300 kg (24991 lb)

20 FT PALLET

  • IATA ULD Code: PGA 20ft flat pallet with net
  • Also knows as: PGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F
  • Classification: M-6
  • Rate Class: Type 1
  • Suitable for: B747F, B747Combi
  • Maximum volume: 33.2 cu. m (1174 cu. ft.)
  • Maximum gross weight: 11340 kg (25000 lb)

AQ6

  • IATA ULD Code: AMA Rectangular Container on P6P Base
  • Also known as: AMF, AMG, AMK, AMP, AQA, AQD, AQ6
  • Classification: M-1
  • Rate Class: Type 2
  • Suitable for: B747F, B747Combi
  • Maximum volume: 17.5 cu. m (618 cu. ft.)
  • Maximum gross weight: 6804 kg (15000 lb)

AQ7

  • IATA ULD Code: AMD Contoured Container on P6P Base
  • Also known as: AQA, AQ7
  • Classification: M1H
  • Rate Class: Type 2H
  • Suitable for: B747F, B747Combi
  • Maximum volume: 19.9 cu. m (702 cu. ft.)
  • Maximum gross weight: 6800 kg (14991 lb)

M-6

  • IATA ULD Code: AGA 20ft Box
  • Container also known as: ASE
  • Classification: M-6
  • Rate Class: Type 1
  • Suitable for: B747F, B747Combi
  • Maximum volume: 33.0 cu. m (1165 cu. ft.)
  • Maximum gross weight: 11340 kg (25000 lb)

LD-26

  • IATA ULD Code: AAF
  • Classification: LD-26
  • Suitable for: B747, B777, DC-10
  • Maximum gross weight:
  • 747/DC-10: 6033 kg (13300 lb)
  • 777/DC-10: 4626 kg (10501 lb)

LD-29

  • IATA ULD Code: AAU Contoured Container on P1P Base
  • Classification: LD-29
  • Rate Class: Type 5
  • Suitable for: B747
  • Internal volume: 14.2 cu. m (501 cu. ft.)
  • Maximum gross weight: 6033 kg (13300 lb)

LD-1

  • IATA ULD Code: AKC Contoured
  • Container Also known as: AVC, AVD, AVK, AVJ Forkable: AVY
  • Classification: LD-1
  • Rate Class: Type 8
  • Suitable for: B747, B767, B777, MD-11
  • Maximum volume: 4.8 cu. m (169.5 cu. ft.)
  • Maximum gross weight: 1588 kg (3500 lb)

LD-2

  • IATA ULD Code: DPE Contoured Container
  • Also known as: APA, DPA
  • Forkable: DPN
  • Classification: LD-2
  • Rate Class: Type 8D
  • Suitable for: B767
  • Maximum volume: 3.4 cu. m (120 cu. ft.)
  • Maximum gross weight: 1225 kg (2700 lb)

LD-3

  • IATA ULD Code: AKE Contoured Container
  • Also known as: AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG
  • Forkable: AKN, AVN, DKN, DVN, XKN
  • Classification: LD-3
  • Rate Class: Type 8
  • Suitable for: A300, A310, A330, A340, B747, B767, B777, DC-10, MD-11, L1011
  • Maximum volume: 4.3 cu. m (152 cu. ft.)
  • Maximum gross weight: 1588 kg (3500 lb)

INSULATED LD-3

  • IATA ULD Code: RKN
  • Classification: LD-3
  • Rate Class: Type 8
  • Suitable for: A300, A310, A330, A340,B747, B767, B777, DC-10, MD-11, L1011
  • Maximum volume: 3.0 cu. m (109 cu. ft.)
  • Maximum gross weight: 1588 kg (3501 lb)
  • Temperature Control Range: -20C to +20C

LD-4

  • IATA ULD Code: ALP Rectangular Container
  • Also known as: ALD, AWD, AWZ, DLP
  • Forkable: ALB, ALC, AWB, AWC
  • Classification: LD-4
  • Rate Class: Type 8
  • Suitable for: B767, B777
  • Maximum volume: 5.7 cu. m (201 cu. ft.)
  • Maximum gross weight: 2449 kg (5399 lb)
  • Temperature Control Range: -20C to +20C

LD-6

  • IATA ULD Code: ALF Contoured Container
  • Also known as: AWD, AWF
  • Forkable: AWC Classification: LD-6
  • Rate Class: Type 6W
  • Suitable for: A300, A310, A330, A340, B747, B767, B777, MD-11, L1011
  • Maximum volume: 8.9 cu. m (314 cu. ft.)
  • Maximum gross weight: 3175 kg (7000 lb)

LD-7

  • IATA ULD Code: XAW P1P Pallet with fixed angle wings and net
  • Classification: LD-7
  • Rate Class: Type 5
  • Suitable for: Wide body: All aircraft
  • Maximum volume with overhang: 14.0 cu. m (494 cu. ft.)
  • Maximum gross weight: 5000 kg (11023 lb)

LD-8

  • IATA ULD Code: DQF
  • Also known as: ALE, ALN, DLE, DLF, DQP, MQP
  • Classification: LD-8
  • Rate Class: Type 6A Suitable for: B767
  • Maximum volume: 6.85 cu. m (242 cu. ft.)
  • Maximum gross weight: 2450 kg (5401 lb)

LD-9

  • IATA ULD Code: AAP Enclosed Pallet on P1P base
  • Also known as: AA2, XAG, XAV
  • Classification: LD-9
  • Rate Class: Type 5
  • Suitable for: A300, A310, A330, A340, B747, B767, DC-10,
  • MD-11, L1011
  • Maximum volume: 9.1 cu. m (321 cu. ft.)
  • Maximum gross weight: 4624 kg (10194 lb), lower deck 6000 kg (13227 lb) main deck

LD-11

  • IATA ULD Code: ALP Rectangular Container
  • Also known as: ALD, AW2, AWB, AWD, AWZ, DLP, DWB, MWB
  • Refrigerated version: RQB, RWD, RWZ
  • Classification: LD-11
  • Rate Class: Type 6
  • Suitable for: A300, A310, A330, A340, B747, B767, DC-10, MD-11, L1011
  • Internal volume: 7.2 cu. m (253 cu. ft.)
  • Maximum gross weight: 3176 kg (7002 lb)

A-2

  • IATA ULD Code: DAA
  • Classification: A-2
  • Suitable for: B767, B747F, DC-8, DC-10, A300/F
  • Internal volume: 12.6 cu. m (444 cu. ft.)
  • Maximum gross weight: 6033 kg (13300 lb)
